PRODUCTS

넳 넲

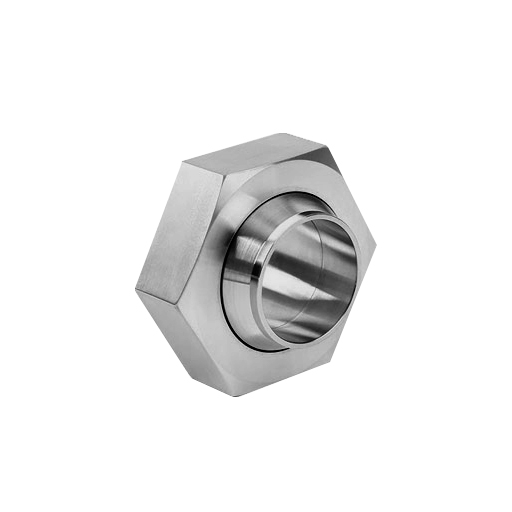

Sanitary Union

Size 1"~4"  DN10~DN150  17.2~168.3
Material 304 304L 316 316L
Surface qualities 1.Ra1.6.
                                2.Ra0.8.
                                3.Ra0.4(Polished)

¥ 0.00

Buy now
ISO/IDF UNION

Reference: ISO/IDF Union
Sizes available: 1"-4"
Body material: ASTM 304 (1.4301), ASTM 316L (1.4404)
Gasket material: EPDM, Silicone, Viton (FPM), Teflon (PTFE)
End connections: Butt Weld
Union types: ISO/IDF
Internal treatment: Ra 16-32µin (0.4-0.8µm), Ra 32µin as default
External treatment: Ra 16-32µin (0.4-0.8µm), Ra 32µin as default

¥ 0.00

Buy now
RJT UNION

Reference: RJT UNION
Sizes available: 1/2"-4"
Body material: ASTM 304 (1.4301), ASTM 316L (1.4404)
Gasket material: EPDM, Silicone, Viton (FPM), Teflon (PTFE)
End connections: Butt-Weld
Union types: RJT
Internal treatment: Ra 16-32µin (0.4-0.8µm), Ra 32µin as default
External treatment: Ra 16-32µin (0.4-0.8µm), Ra 32µin as default

¥ 0.00

Buy now
Bevel-seat fitting

Reference: Bevel seat
Sizes available: 1"-8"
Product types: Clamp, Ferrule, Cap, Elbow, Tee, Cross, Reducer
End connections: Bevel Seat (13H,14PRF,15TRF and etc)
Body material: ASTM 304 (1.4301), ASTM 316L (1.4404)
Gasket material: EPDM, Silicone, Viton (FPM)
Internal treatment: Ra 16-32µin (0.4-0.8µm), Ra 32µin as default
External treatment: Ra 16-32µin (0.4-0.8µm), Ra 32µin as default

¥ 0.00

Buy now
SMS UNION

Reference: SMS Union
Sizes available: 1''-4''
Body material: ASTM 304 (1.4301), ASTM 316L (1.4404)
Gasket material: EPDM, Silicone, Viton (FPM), Teflon (PTFE)
End connections: Butt-Weld
Union types:SMS Standard
Internal treatment: Ra 16-32µin (0.4-0.8µm), Ra 32µin as default
External treatment: Ra 16-32µin (0.4-0.8µm), Ra 32µin as default

¥ 0.00

Buy now
DIN11851/DIN11850 UNION

Reference: DIN Union
Sizes available: DN10-DN100
Body material: ASTM 304 (1.4301), ASTM 316L (1.4404)
Gasket material: EPDM, Silicone, Viton (FPM), Teflon (PTFE)
End connections: Butt-Weld
Union types: DIN11850/DIN11851
Internal treatment: Ra 16-32µin (0.4-0.8µm), Ra 32µin as default
External treatment: Ra 16-32µin (0.4-0.8µm), Ra 32µin as default

¥ 0.00

Buy now
